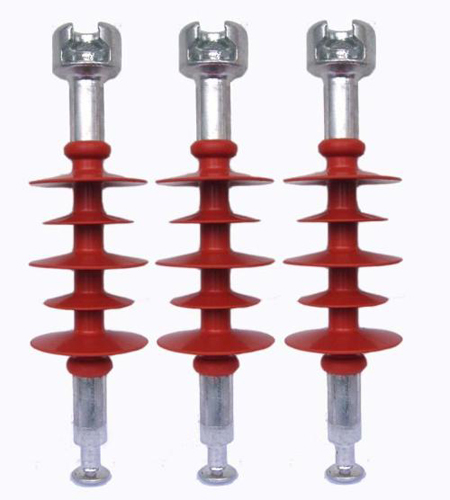

鐵路用復(fù)合絕緣子
|
絕緣子型號(hào)
|
額定電壓KV
|
最小電弧距離H.mm
|
最小公稱爬電距離L.mm
|
雷電全波沖擊耐受電壓KV（峰值）不小于
|
工頻一分鐘濕耐受電壓KV（有效值）不小于
|
|
FXBW-10/70
|
10
|
200
|
400
|
165
|
50
|
|
FXBW1-35/70
|
35
|
450
|
810
|
230
|
95
|
|
FXBW2-35/70
|
35
|
450
|
810
|
230
|
95
|
|
FXBW3-35/70
|
35
|
450
|
1015
|
230
|
95
|
|
FXBW4-35/70
|
35
|
450
|
1015
|
230
|
95
|
|
FXBW1-66/70
|
66
|
700
|
1450
|
410
|
185
|
|
FXBW2-66/70
|
66
|
700
|
1450
|
410
|
185
|
|
FXBW3-66/70
|
66
|
700
|
1900
|
410
|
185
|
|
FXBW4-66/70
|
66
|
700
|
1900
|
410
|
185
|
|
FXBW1-110/70
|
110
|
1000
|
2700
|
550
|
300
|
|
FXBW2-110/70
|
110
|
1000
|
2700
|
550
|
300
|
|
FXBW3-110/70
|
110
|
1000
|
3150
|
550
|
300
|
|
FXBW4-110/70
|
110
|
1000
|
3150
|
550
|
300
|
|
FXBW1-110/100
|
110
|
1000
|
2700
|
550
|
300
|
|
FXBW2-110/100
|
110
|
1000
|
2700
|
550
|
300
|
|
FXBW3-110/100
|
110
|
1000
|
3150
|
550
|
300
|
|
FXBW4-110/100
|
110
|
1000
|
3150
|
550
|
300
|
|
FXBW1-220/100
|
220
|
1900
|
5100
|
1175
|
540
|
|
FXBW2-220/100
|
220
|
1900
|
5100
|
1175
|
540
|
|
FXBW3-220/100
|
220
|
1900
|
6300
|
1175
|
540
|
|
FXBW4-220/100
|
220
|
1900
|
6300
|
1175
|
540
|
|
FXBW1-220/160
|
220
|
1900
|
5100
|
1175
|
540
|
|
FXBW2-220/160
|
220
|
1900
|
5100
|
1175
|
540
|
|
FXBW3-220/160
|
220
|
1900
|
6300
|
1175
|
540
|
|
